12920 Series

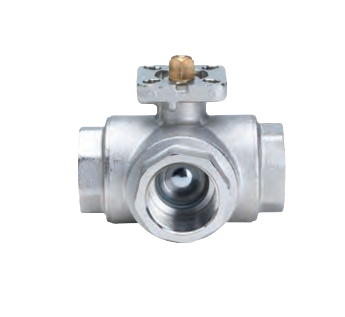

3 Way Brass Ball Valve Female x Female x Female NPT ISO 5211 Full Bore with L-Port
 |
|---|
 |
 |
 |
 |
 |
 |
 |
 |
Features:
Brass Body Nickel Plated
Sizes: 1/4"- 2"
Connection: Female x Female x Female NPT
L-Port
Mounting Connection: ISO 5211
Standard: ANSI B 1.20.1
Pressure:
580 PSI (3/8" - 1-1/4")
360 PSI (1-1/2" - 2")
Temperature: -4° F to 266° F
Application: Hot and Cold Water, Air, Hydrocarbons, and Non-aggressive Fluids
Item | Size | Connection Type | Inner Case Qty | Master Case Qty | MC Weight lbs |
12920-002 | 1/4" | Female x Female x Female NPT | 6 | 30 | 35.45033 |
12920-003 | 3/8" | Female x Female x Female NPT | 6 | 30 | 33.92914 |
12920-005 | 1/2" | Female x Female x Female NPT | 6 | 30 | 30.02696 |
12920-007 | 3/4" | Female x Female x Female NPT | 6 | 24 | 38.18406 |
12920-010 | 1" | Female x Female x Female NPT | 6 | 12 | 33.33389 |
12920-012 | 1-1/4" | Female x Female x Female NPT | 2 | 6 | 18.4656 |
12920-015 | 1-1/2" | Female x Female x Female NPT | 3 | 12 | 40.182 |
12920-020 | 2" | Female x Female x Female NPT | 1 | 6 | 27.216 |
