12950 Series

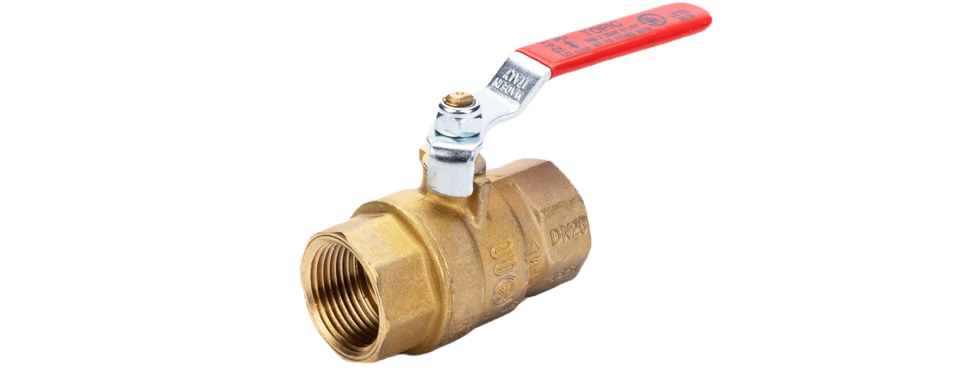

Brass Ball Valve Female x Female Threaded NPT with Red Lever
 |
|---|
 |
 |
 |
 |
 |
 |
 |
 |
Features:
Brass Body
Sizes: 1/4"-4"
Connection: Female x Female NPT
Certifications: UL | CSA | FM
Standard: ANSI B 1.20.1
Red Lever
Pressure:
920 PSI (1/4"-3/8")
580 PSI (1/2"-2")
360 PSI (2-1/2"-4")
Temperature: -4° F to 140° F for Gas Application;
-4° F to 266° F for All Other Applications
Application: Hot and Cold Water, Compressed Air, Oils, All Kinds of Gases, Non-aggressive Fluids
Item | Size | Connection Type | Inner Case Qty | Master Case Qty | MC Weight lbs |
12950-002 | 1/4" | Female x Female NPT | 20 | 100 | 30.48993 |
12950-003 | 3/8" | Female x Female NPT | 20 | 100 | 30.42379 |
12950-005 | 1/2" | Female x Female NPT | 20 | 80 | 35.53852 |
12950-007 | 3/4" | Female x Female NPT | 12 | 48 | 33.11343 |
12950-010 | 1" | Female x Female NPT | 8 | 32 | 33.863 |
12950-012 | 1-1/4" | Female x Female NPT | 4 | 20 | 36.99357 |
12950-015 | 1-1/2" | Female x Female NPT | 4 | 8 | 20.50299 |
12950-020 | 2" | Female x Female NPT | 2 | 8 | 33.33389 |
12950-025 | 2-1/2" | Female x Female NPT | 1 | 4 | 28.50577 |
12950-030 | 3" | Female x Female NPT | 1 | 4 | 48.12691 |
12950-040 | 4" | Female x Female NPT | 1 | 1 | 18.34246 |
